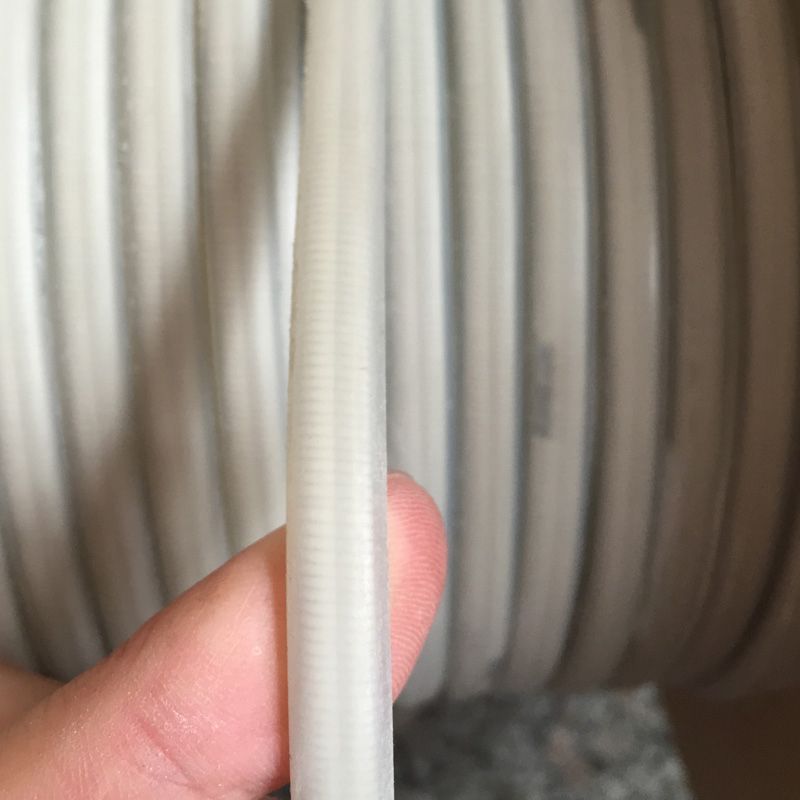

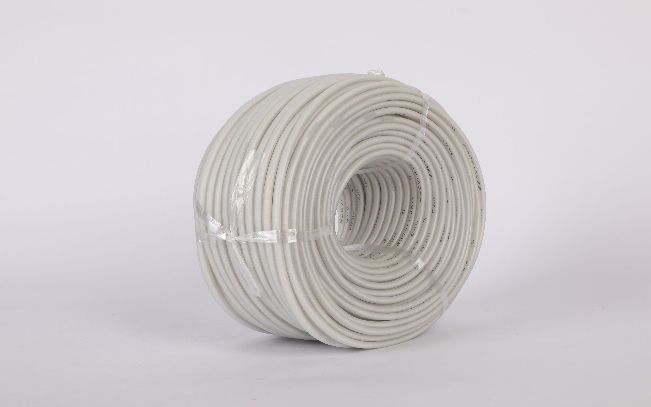

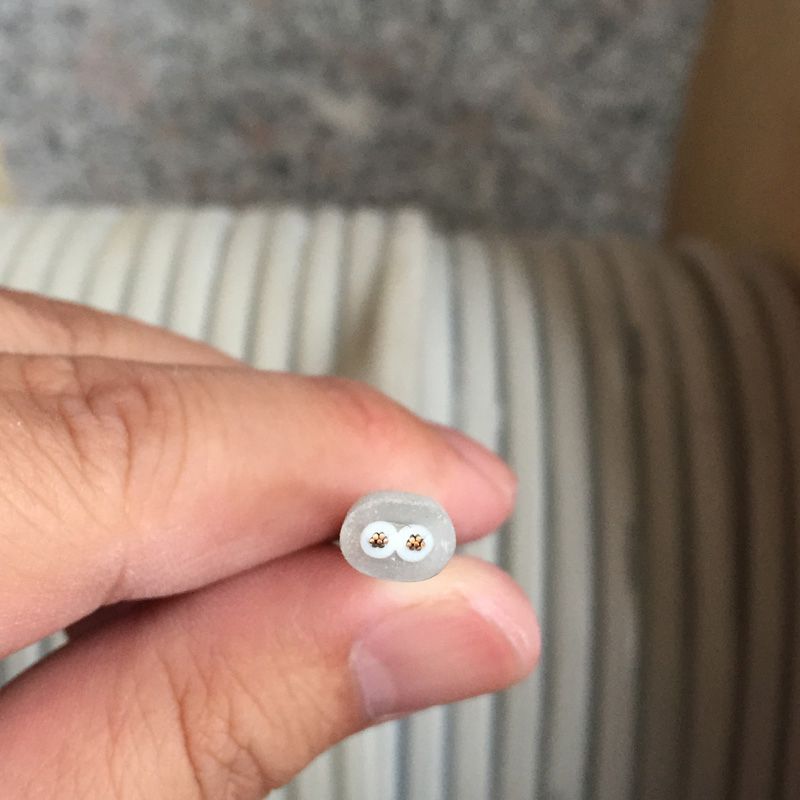

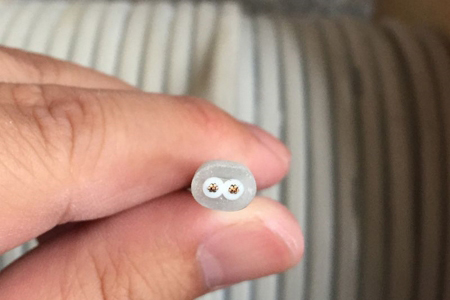

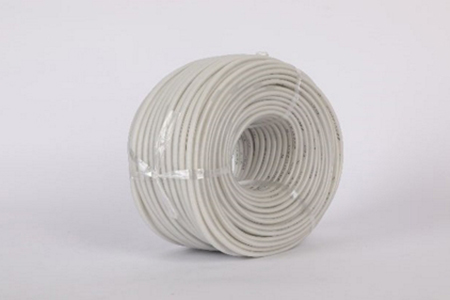

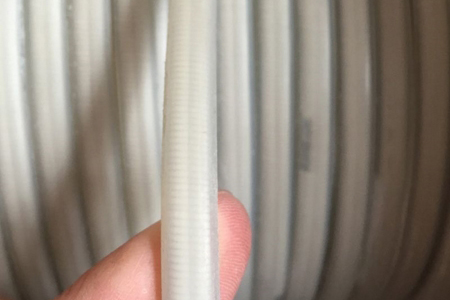

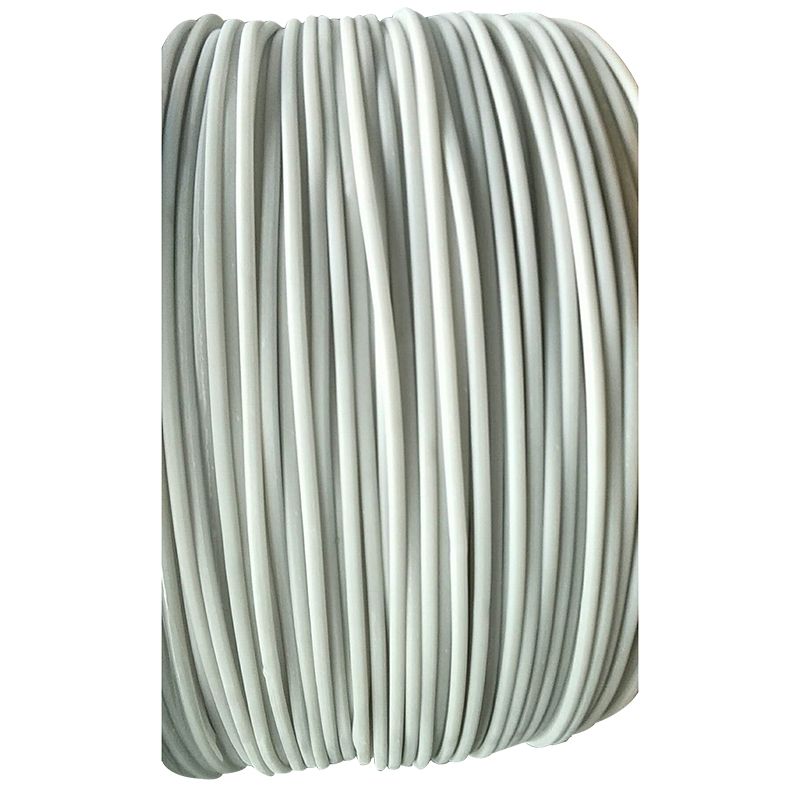

Silicone Insulated Constant Wattage Heating Cable, RGG
Shenzhuan RGG series silicone insulated constant wattage heating cable is perfectly suitable for maintaining temperatures of up to + 180℃. Its great flexibility of temperature resistance range means that this silicone insulated constant power heating cable is ideally applicable for heat tracing in industrial refrigeration or in countries with very harsh climate conditions even at temperatures as low as -50℃.
- Excellent temperature resistance: The silicone-insulated heating cable is applied with silicone rubber as insulation and thermal conductivity material;
- Cold tail incorporated: no extra connection necessary;
- Hard-wearing and flexible:The silicone insulated constant power heating cable can be cut to length on site and it is particularly easy for installation;
- Extremely simple termination: With tinned copper braid and silicon elastomer outer sheath, this unique heat tracing cable is very flexible and apt to bend;
- High thermal efficiency;
- Welded contact points;
Adjustable voltage: 110V(120V), 220V(230V), 380V
| Model | Voltage (V) | Nominal output (W/m) | Conductor size (mm2 ) | Heating elements | Accepted voltage (V) | Insulation resistance (MΩ/mm) | Max. circuit length (m) |
| 24, 36, 110, 220 V | 25 | 2×0.75 | Copper-nickel alloy wire | AC3500V | ≥ 200mn | 65 | |
| 24, 36, 110, 220 V | 40 | 2×0.75 | Copper-nickel alloy wire | AC3500V | ≥200mn | 50 | |
| 24, 36, 110, 220 V | 50 | 2×0.75 | Copper-nickel alloy wire | AC3500V | ≥200mn | 44 | |
| Note：The above heating length, lead length, nominal voltage and power can be customized. | |||||||
Shenzhuan is a manufacturer of heating cables and heat trace cables, with years of experience in providing electrical heat tracing solutions for a broad range of heating applications. We are ISO9001 accredited company for engineering and manufacturing heat tracing products. Our goal is to manufacture and supply premium heating cables to make sure that the electrical heating systems at customers' sites operate in a safe and optimal condition. If you are looking for products like roof deicing cable, gutter deicing cable, snow melting cable, pipe freeze protection cable, Shenzhuan will be your reliable heating cable supplier.
