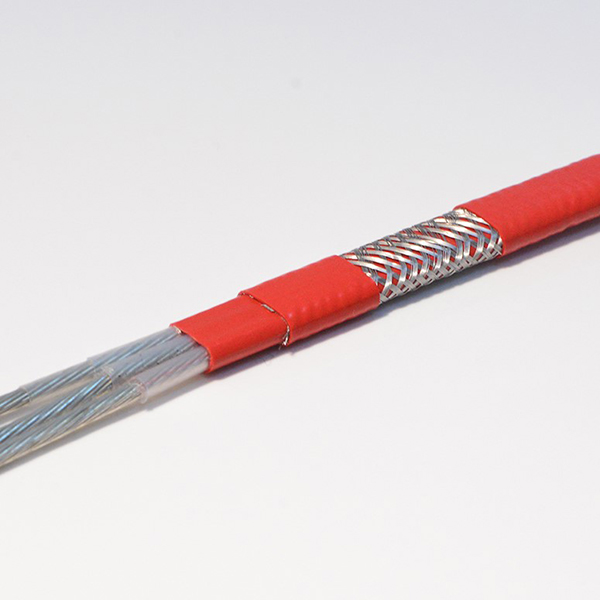

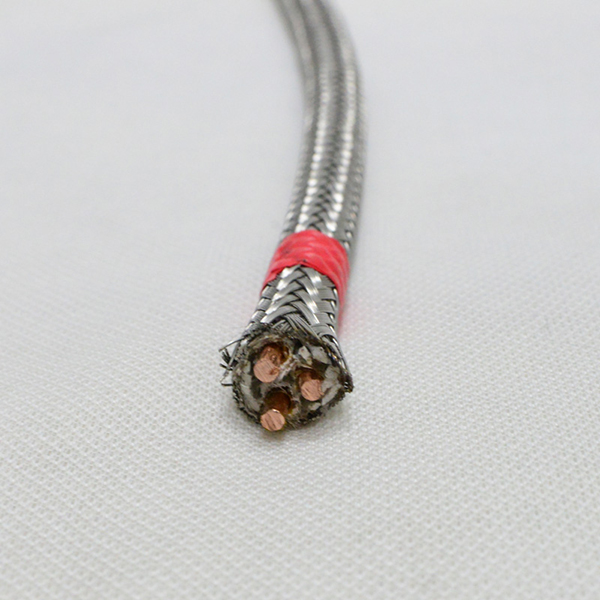

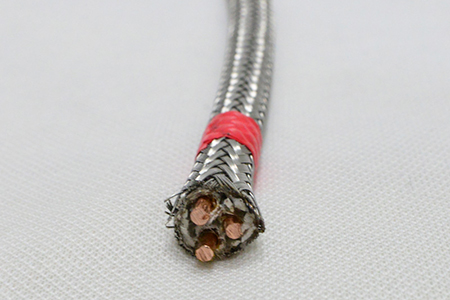

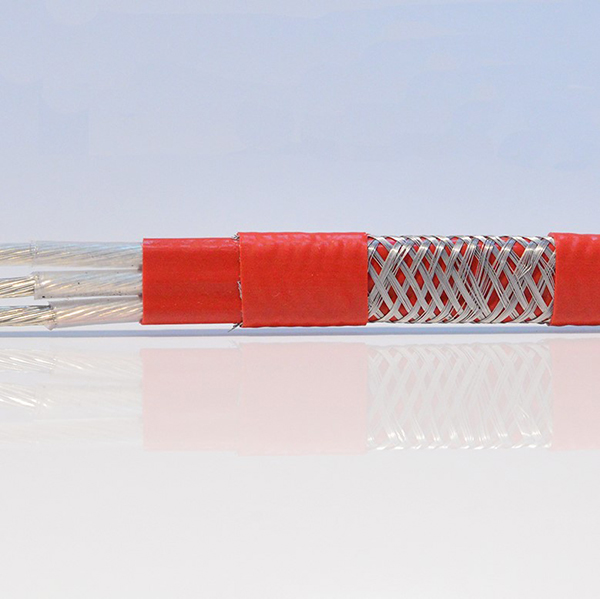

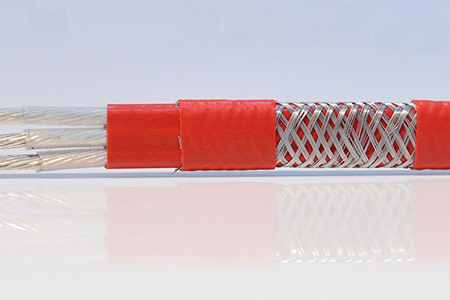

Series Constant Wattage Heating Cable, RDC
Shenzhuan RDC series constant wattage heating cable is generally used where temperatures up to 250℃ is to be maintained for a long period of time. As a constant power cable, the heat tracing cable is a succession of identical resistors, making it possible to have the same power dissipation on each of these sections. In this way, it can ensure precise and constant temperature output regardless of ambient and surface temperatures, which is exactly different from other parallel constant heating tracing cables. With process temperature maintenance and freeze protection, this flexible heating cable is well applicable in petrochemical plants, chemical industry, building and construction sector and other industries for frost protection, insulation and heat tracing of long gas or oil pipelines, pipes, tanks, pumps, etc .
- Freeze protection
- Condensation prevention
- Process control
- Viscosity control
- Composite curing
| Model | Nominal voltage (V) | Nominal output (W/m) | Cross-section (mm2) | Max. accepted temperature (℃) | Explosion-proof symbol (EX) | Insulation resistance (MΩ/100m) | Min. installation temperature (℃) |
| 220 380 660 | 10, 20, 30, 35, 40, 45, 50, 60 | 3.0 | J3-205 J6-250 | EX e II T3 Gb | ≥50MΩ | -60 | |
| 4.0 | |||||||
| 5.0 | |||||||
| 6.0 | |||||||
| 7.0 | |||||||
| 220 380 660 | 10, 20, 30, 35, 40, 45, 50, 60 | 3.0 | J3-205 J6-250 | EX e II T3 Gb | ≥50MΩ | -60 | |
| 4.0 | |||||||
| 5.0 | |||||||
| 6.0 | |||||||
| 7.0 |
Shenzhuan is a manufacturer of heating cables and heat trace cables, with years of experience in providing electrical heat tracing solutions for a broad range of heating applications. We are ISO9001 accredited company for engineering and manufacturing heat tracing products. Our goal is to manufacture and supply premium heating cables to make sure that the electrical heating systems at customers' sites operate in a safe and optimal condition. If you are looking for products like roof deicing cable, gutter deicing cable, snow melting cable, pipe freeze protection cable, Shenzhuan will be your reliable heating cable supplier.
Carbon Fiber Heating Cable
Shenzhuan carbon fiber heating cable has an advanced carbon fiber heating element that gives it strength and durability. This carbon fiber heating wire utilizes a lightweight material that is soft and bends into many different shapes.
Compensating Cables for Thermocouple
Shenzhuan compensating cables & thermocouple extension wires are generally used for the transmission of thermoelectric voltage from thermocouple to cold junction. As you can see, there are different types of thermocouples.

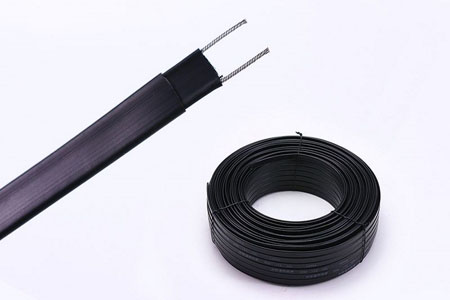

Low temperature heating cable
Maximum maintenance temperature 65±5℃;
Maximum accepted temperature: Polyethylene 105℃, low smoke and halogen-free 105℃, fluorine plastic 135℃

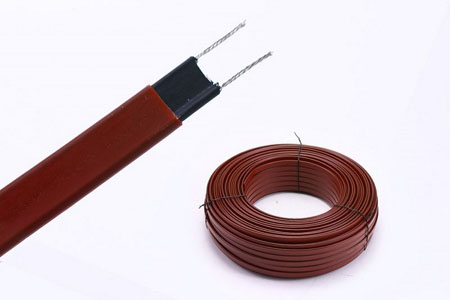

Medium temperature heating cable
Maximum maintenance temperature 105℃;
Maximum accepted temperature: flame retardant polyolefin 135℃, fluorine plastic 135℃ (superior corrosion-resistant performance)
